Data Structures & Algorithms

Last updated on 2024-03-28 | Edit this page

Estimated time: 35 minutes

Overview

Questions

  • What’s the most efficient way to construct a list?
  • When should tuples be used?
  • When are sets appropriate?
  • What is the best way to search a list?

Objectives

  • Able to summarise how lists and tuples work behind the scenes.
  • Able to identify appropriate use-cases for tuples.
  • Able to utilise dictionaries and sets effectively
  • Able to use bisect_left() to perform a binary search of a list or array

The important information for students to learn within this episode are the patterns demonstrated via the benchmarks.

This episode introduces many complex topics, these are used to ground the performant patterns in understanding to aid memorisation.

It should not be a concern to students if they find the data-structure/algorithm internals challenging, if they are still able to recognise the demonstrated patterns.

This episode is challenging!

Within this episode you will be introduced to how certain data-structures and algorithms work.

This is used to explain why one approach is likely to execute faster than another.

It matters that you are able to recognise the faster/slower approaches, not that you can describe or reimplement these data-structures and algorithms yourself.

Lists

Lists are a fundamental data structure within Python.

It is implemented as a form of dynamic array found within many programming languages by different names (C++: std::vector, Java: ArrayList, R: vector, Julia: Vector).

They allow direct and sequential element access, with the convenience to append items.

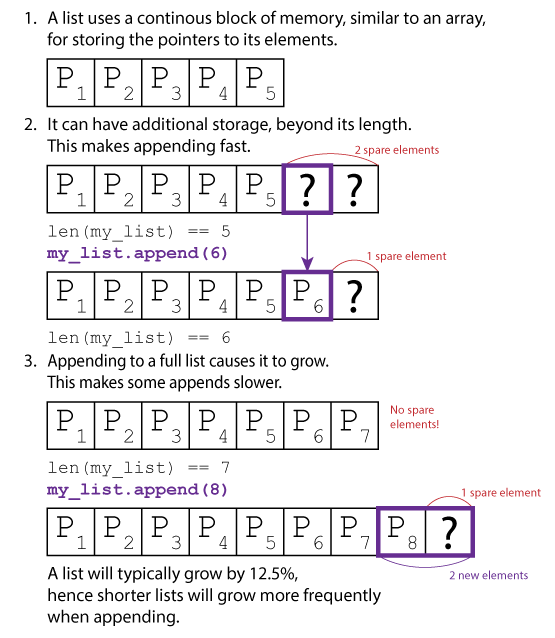

This is achieved by internally storing items in a static array. This array however can be longer than the list, so the current length of the list is stored alongside the array. When an item is appended, the list checks whether it has enough spare space to add the item to the end. If it doesn’t, it will re-allocate a larger array, copy across the elements, and deallocate the old array. The item to be appended is then copied to the end and the counter which tracks the list’s length is increemnted.

The amount the internal array grows by is dependent on the particular list implementation’s growth factor. CPython for example uses newsize + (newsize >> 3) + 6, which works out to an over allocation of roughly ~12.5%.

A line graph displaying the relationship between the number of calls to append() and the number of internal resizes of a CPython list. It has a logarithmic relationship, at 1 million appends there have been 84 internal resizes.
The relationship between the number of appends to an empty list, and the number of internal resizes in CPython.

This has two implications:

  • If you are creating large static lists, they will use upto 12.5% excess memory.
  • If you are growing a list with append(), there will be large amounts of redundant allocations and copies as the list grows.

List Comprehension

If creating a list via append() is undesirable, the natural alternative is to use list-comprehension.

List comprehension can be twice as fast at building lists than using append(). This is primarily because list-comprehension allows Python to offload much of the computation into faster C code. General python loops in contrast can be used for much more, so they remain in Python bytecode during computation which has additional overheads.

This can be demonstrated with the below benchmark:

PYTHON

from timeit import timeit

def list_append():
    li = []
    for i in range(100000):
        li.append(i)

def list_preallocate():
    li = [0]*100000
    for i in range(100000):
        li[i] = i

def list_comprehension():
    li = [i for i in range(100000)]

repeats = 1000
print(f"Append: {timeit(list_append, number=repeats):.2f}ms")
print(f"Preallocate: {timeit(list_preallocate, number=repeats):.2f}ms")
print(f"Comprehension: {timeit(list_comprehension, number=repeats):.2f}ms")

timeit is used to run each function 1000 times, providing the below averages:

OUTPUT

Append: 3.50ms
Preallocate: 2.48ms
Comprehension: 1.69ms

Results will vary between Python versions, hardware and list lengths. But in this example list comprehension was 2x faster, with pre-allocate fairing in the middle. Although this is milliseconds, this can soon add up if you are regularly creating lists.

Tuples

In contrast, Python’s tuples are immutable static arrays (similar to strings), their elements cannot be modified and they cannot be resized.

Their potential use-cases are greatly reduced due to these two limitations, they are only suitable for groups of immutable properties.

Tuples can still be joined with the + operator, similar to appending lists, however the result is always a newly allocated tuple (without a list’s over-allocation).

Python caches a large number of short (1-20 element) tuples. This greatly reduces the cost of creating and destroying them during execution at the cost of a slight memory overhead.

This can be easily demonstrated with Python’s timeit module in your console.

SH

>python -m timeit "li = [0,1,2,3,4,5]"
10000000 loops, best of 5: 26.4 nsec per loop

>python -m timeit "tu = (0,1,2,3,4,5)"
50000000 loops, best of 5: 7.99 nsec per loop

It takes 3x as long to allocate a short list than a tuple of equal length. This gap only grows with the length, as the tuple cost remains roughly static whereas the cost of allocating the list grows slightly.

Dictionaries

Dictionaries are another fundamental Python data-structure. They provide a key-value store, whereby unique keys with no intrinsic order map to attached values.

“no intrinsic order”

Since Python 3.6, the items within a dictionary will iterate in the order that they were inserted. This does not apply to sets.

OrderedDict still exists, and may be preferable if the order of items is important when performing whole-dictionary equality.

Hashing Data Structures

Python’s dictionaries are implemented as hashing data structures. Within a hashing data structure each inserted key is hashed to produce a (hopefully unique) integer key. The dictionary is pre-allocated to a default size, and the key is assigned the index within the dictionary equivalent to the hash modulo the length of the dictionary. If that index doesn’t already contain another key, the key (and any associated values) can be inserted. When the index isn’t free, a collision strategy is applied. CPython’s dictionary and set both use a form of open addressing whereby a hash is mutated and corresponding indices probed until a free one is located. When the hashing data structure exceeds a given load factor (e.g. 2/3 of indices have been assigned keys), the internal storage must grow. This process requires every item to be re-inserted which can be expensive, but reduces the average probes for a key to be found.

A diagram demonstrating how the keys (hashes) 37, 64, 14, 94, 67 are inserted into a hash table with 11 indices. This is followed by the insertion of 59, 80 and 39 which require linear probing to be inserted due to collisions.
An visual explanation of linear probing, CPython uses an advanced form of this.

To retrieve or check for the existence of a key within a hashing data structure, the key is hashed again and a process equivalent to insertion is repeated. However, now the key at each index is checked for equality with the one provided. If any empty index is found before an equivalent key, then the key must not be present in the ata structure.

Keys

Keys will typically be a core Python type such as a number or string. However multiple of these can be combined as a Tuple to form a compound key, or a custom class can be used if the methods __hash__() and __eq__() have been implemented.

You can implement __hash__() by utilising the ability for Python to hash tuples, avoiding the need to implement a bespoke hash function.

PYTHON

class MyKey:

    def __init__(self, _a, _b, _c):
        self.a = _a
        self.b = _b
        self.c = _c

    def __eq__(self, other):
        return (isinstance(other, type(self))
                and (self.a, self.b, self.c) == (other.a, other.b, other.c))

    def __hash__(self):
        return hash((self.a, self.b, self.c))

dict = {}
dict[MyKey("one", 2, 3.0)] = 12

The only limitation is that where two objects are equal they must have the same hash, hence all member variables which contribute to __eq__() should also contribute to __hash__() and vice versa (it’s fine to have irrelevant or redundant internal members contribute to neither).

Sets

Sets are dictionaries without the values (both are declared using {}), a collection of unique keys equivalent to the mathematical set. Modern CPython now uses a set implementation distinct from that of it’s dictionary, however they still behave much the same in terms of performance characteristics.

Sets are used for eliminating duplicates and checking for membership, and will normally outperform lists especially when the list cannot be maintained sorted.

Exercise: Unique Collection

There are four implementations in the below example code, each builds a collection of unique elements from 25,000 where 50% can be expected to be duplicates.

Estimate how the performance of each approach is likely to stack up.

If you reduce the value of repeats it will run faster, how does changing the number of items (N) or the ratio of duplicates int(N/2) affect performance?

PYTHON

import random
from timeit import timeit

def generateInputs(N = 25000):
    random.seed(12)  # Ensure every list is the same
    return [random.randint(0,int(N/2)) for i in range(N)]

def uniqueSet():
    ls_in = generateInputs()
    set_out = set(ls_in)

def uniqueSetAdd():
    ls_in = generateInputs()
    set_out = set()
    for i in ls_in:
        set_out.add(i)

def uniqueList():
    ls_in = generateInputs()
    ls_out = []
    for i in ls_in:
        if not i in ls_out:
            ls_out.append(i)

def uniqueListSort():
    ls_in = generateInputs()
    ls_in.sort()
    ls_out = [ls_in[0]]
    for i in ls_in:
        if ls_out[-1] != i:
            ls_out.append(i)

repeats = 1000
gen_time = timeit(generateInputs, number=repeats)
print(f"uniqueSet: {timeit(uniqueSet, number=repeats)-gen_time:.2f}ms")
print(f"uniqueSetAdd: {timeit(uniqueSetAdd, number=repeats)-gen_time:.2f}ms")
print(f"uniqueList: {timeit(uniqueList, number=repeats)-gen_time:.2f}ms")
print(f"uniqueListSort: {timeit(uniqueListSort, number=repeats)-gen_time:.2f}ms")
  • uniqueSet() passes the input list to the constructor set().
  • uniqueSetAdd() creates an empty set, and then iterates the input list adding each item individually.
  • uniqueList() this naive approach, checks whether each item in the input list exists in the output list before appending.
  • uniqueListSort() sorts the input list, allowing only the last item of the output list to be checked before appending.

There is not a version using list comprehension, as it is not possible to refer to the list being constructed during list comprehension.

Constructing a set by passing in a single list is the clear winner.

Constructing a set with a loop and add() (equivalent to a list’s append()) comes in second. This is slower due to the pythonic loop, whereas adding a full list at once moves this to CPython’s back-end.

The naive list approach is 2200x times slower than the fastest approach, because of how many times the list is searched. This gap will only grow as the number of items increases.

Sorting the input list reduces the cost of searching the output list significantly, however it is still 8x slower than the fastest approach. In part because around half of it’s runtime is now spent sorting the list.

OUTPUT

uniqueSet: 0.30ms
uniqueSetAdd: 0.81ms
uniqueList: 660.71ms
uniqueListSort: 2.67ms

Searching

Independent of the performance to construct a unique set (as covered in the previous section), it’s worth identifying the performance to search the data-structure to retrieve an item or check whether it exists.

The performance of a hashing data structure is subject to the load factor and number of collisions. An item that hashes with no collision can be checked almost directly, whereas one with collisions will probe until it finds the correct item or an empty slot. In the worst possible case, whereby all insert items have collided this would mean checking every single item. In practice, hashing data-structures are designed to minimise the chances of this happening and most items should be found or identified as missing with a single access.

In contrast if searching a list or array, the default approach is to start at the first item and check all subsequent items until the correct item has been found. If the correct item is not present, this will require the entire list to be checked. Therefore the worst-case is similar to that of the hashing data-structure, however it is guaranteed in cases where the item is missing. Similarly, on-average we would expect an item to be found half way through the list, meaning that an average search will require checking half of the items.

If however the list or array is sorted, a binary search can be used. A binary search divides the list in half and checks which half the target item would be found in, this continues recursively until the search is exhausted whereby the item should be found or dismissed. This is significantly faster than performing a linear search of the list, checking a total of log N items every time.

The below code demonstrates these approaches and their performance.

PYTHON

import random
from timeit import timeit
from bisect import bisect_left

N = 25000  # Number of elements in list
M = 2  # N*M == Range over which the elements span

def generateInputs():
    random.seed(12)  # Ensure every list is the same
    st = set([random.randint(0, int(N*M)) for i in range(N)])
    ls = list(st)
    ls.sort()  # Sort required for binary
    return st, ls  # Return both set and list

def search_set():
    st, _ = generateInputs()
    j = 0
    for i in range(0, int(N*M), M):
        if i in st:
            j += 1

def linear_search_list():
    _, ls = generateInputs()
    j = 0
    for i in range(0, int(N*M), M):
        if i in ls:
            j += 1

def binary_search_list():
    _, ls = generateInputs()
    j = 0
    for i in range(0, int(N*M), M):
        k = bisect_left(ls, i)
        if k != len(ls) and ls[k] == i:
            j += 1


repeats = 1000
gen_time = timeit(generateInputs, number=repeats)
print(f"search_set: {timeit(search_set, number=repeats)-gen_time:.2f}ms")
print(f"linear_search_list: {timeit(linear_search_list, number=repeats)-gen_time:.2f}ms")
print(f"binary_search_list: {timeit(binary_search_list, number=repeats)-gen_time:.2f}ms")

Searching the set is fastest performing 25,000 searches in 0.04ms. This is followed by the binary search of the (sorted) list which is 145x slower, although the list has been filtered for duplicates. A list still containing duplicates would be longer, leading to a more expensive search. The linear search of the list is more than 56,600x slower than the fastest, it really shouldn’t be used!

OUTPUT

search_set: 0.04ms
linear_search_list: 2264.91ms
binary_search_list: 5.79ms

These results are subject to change based on the number of items and the proportion of searched items that exist within the list. However, the pattern is likely to remain the same. Linear searches should be avoided!

Key Points

  • List comprehension should be preferred when constructing lists.
  • Where appropriate, tuples should be preferred over Python lists.
  • Dictionaries and sets are appropriate for storing a collection of unique data with no intrinsic order for random access.
  • When used appropriately, dictionaries and sets are significantly faster than lists.
  • If searching a list or array is required, it should be sorted and searched using bisect_left() (binary search).
